Choosing the Right Flowserve PMV Valve Positioner for Your Application

Valve positioners are essential components in modern process control systems, ensuring precise valve movement in response to changing process variables. Whether you’re working with linear or rotary control valves, selecting the right positioner can dramatically improve performance, reliability, and diagnostics.

Flowserve’s PMV range offers three standout models—D3, P5, and EP5—each tailored to different control environments. Here’s how to choose the best one for your needs.

Understanding Valve Positioners

Valve positioners interpret signals from a controller and adjust the valve actuator accordingly. They come in three main types:

• Pneumatic Positioners: Receive pneumatic signals (3–15 psi) and send pneumatic output to actuators.
• Electro-Pneumatic Positioners: Accept analog electrical signals (4–20 mA) and convert them to pneumatic output.
• Digital Positioners: Handle digital signals (HART, PROFIBUS, Foundation Fieldbus) and offer advanced diagnostics and communication.

Installation varies by valve type:

• Linear valves: Positioners mount on the yoke or top casing.
• Rotary valves: Mounted inline with valve and actuator stems.

Flowserve PMV Positioner Options

PMV D3 – The Smart Digital Powerhouse

If you’re looking for cutting-edge diagnostics, low air consumption, and flexible communication, the PMV D3 is your go-to solution.

Key Features:

• Digital interface with graphic display and five-button configuration
• Zero-bleed pneumatic relay for cost-effective operation
• Communication options: HART®, Profibus PA/DP, Foundation Fieldbus.
• Optional ValveSight diagnostics for partial stroke testing (PST)
• Mounts on both rotary and linear actuators
• Available in standard, intrinsically safe, and explosion-proof versions

Best For:

• Facilities requiring advanced diagnostics and communication
• Hazardous environments
• Applications where air consumption and lifecycle cost matter

PMV P5 & EP5 – The Reliable Analog Workhorses

For fast, accurate response and rugged simplicity, the P5 (pneumatic) and EP5 (electro-pneumatic) models deliver exceptional performance.

Key Features:

• High-gain spool valve for rapid actuator response
• Zero-span adjustment for easy commissioning
• Modular design for adding I/P converters or feedback units
• Explosion-proof (EP5-EX), fail freeze (EP5-FS), and intrinsically safe (EP5-IS) options
• Suitable for single- or double-acting applications

Best For:

• Standard control environments with analog systems
• Users prioritising simplicity and reliability.
• Applications needing modular flexibility

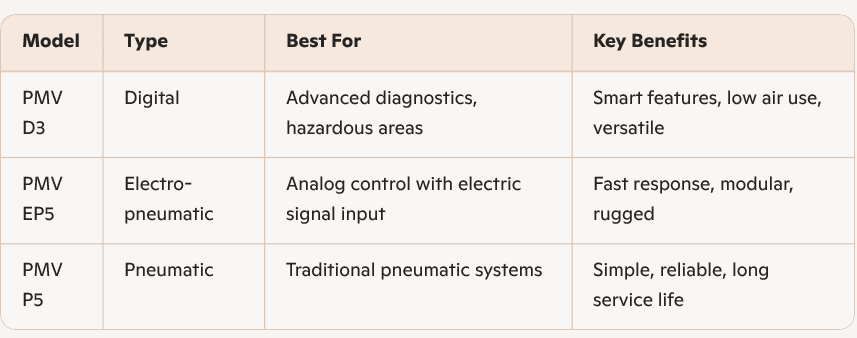

Making the Right Choice

🤝 Partner with JM Process Control

As a trusted Flowserve Master distributor, JM Process Control offers expert guidance and top-tier support for all your valve and actuation needs. Whether you’re upgrading to smart diagnostics or maintaining analog reliability, we’ll help you find the perfect Flowserve PMV positioner.
