Description

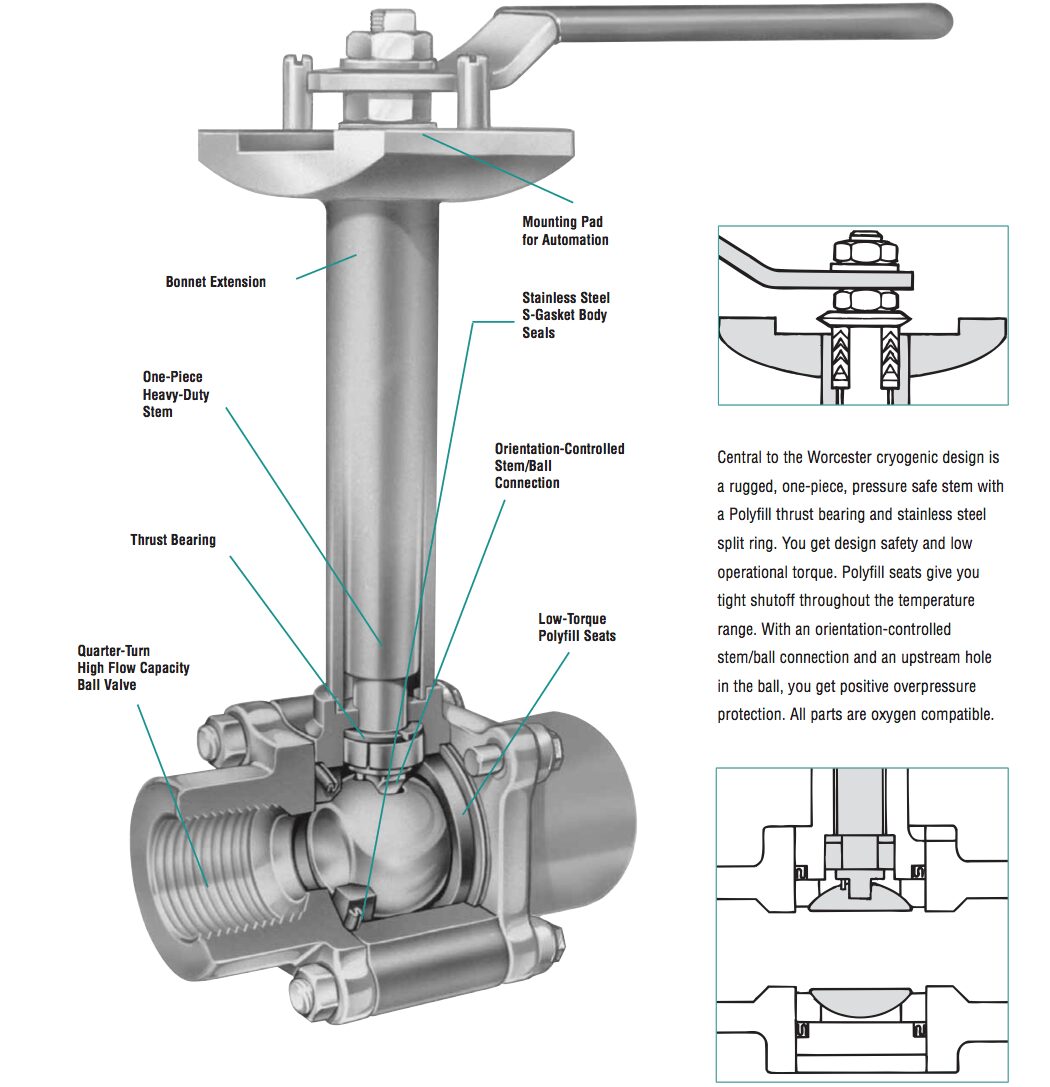

Flowserve Worcester’s experience and expertise in the design of cryogenic ball valves has been recognised throughout the process industry for over 30 years. Utilising a combination of our Fluorofill seat material and our unique ‘S’ gasket body seal, the valve provides positive shut-off in the most demanding of cryogenic applications. From the original C44 R5 and MC44 designs the seat and body seals have remained a constant feature and with both products now rationalised into the C44 R7, additional technical advantages have been included to provide the best cryogenic ball valve on the market. The Worcester 3-piece ball valve offers a number of technical advantages over other types of valve.
The Flowserve Worcester C4, C44, C51 is a 3-piece and flange cryogenic ball valve specifically designed for use on liquid gases such as nitrogen and oxygen. It offers high-performance, shutoff valves for intermittent and continuous flow applications with temperatures to -425°F ( -196°C), the valve can also be fitted with the proven Flowserve Worcester V-Flow metal seat to provide accurate control of liquid gases. Also available as full bore up to 1.1/2” as the C59 Cryogenic Ball Valve.
Utilising a combination or our Fluorofill seat material and unique ‘S’ gasket body seal, the valves provides positive shut-off in the most demanding of cryogenic applications. The latest Flowserve Worcester C44 Cryogenic Ball Valve provides additional technical advantages to provide the best cryogenic ball valve available on the market.
High Flow Rate. The high Cv available from a ball valve compared with a globe valve makes the C44 ideal for loading stations where speed of delivery is critical. The valve is also available as full bore up to DN40 as the C59 series.
Low Body Mass. The one-piece design minimises the mass of the body and therefore makes the valve economic to use. It also provides a weight advantage, making the valve ideal for road tankers and other transportation requirements.
Ease of Operation. The unique low torque seat design and the 90 degree operation of the ball valve makes it ideal for use with both pneumatic and electric actuators with the additional benefit of rotary control if required. When manually operated, the lever provides visual indication of the valve orientation (open or closed) which is critical in the safe loading and unloading of liquid gases.
Ease of Maintenance. The 3-piece concept provides the benefit of easy maintenance through the “slide out” body method. Flowserve Worcester’s experience and expertise in the
design of cryogenic ball valves has been recognised throughout the process industry for over 30 years. Utilising a combination of our Fluorofill seat material and our unique ‘S’ gasket body seal, the valve provides positive shut-off in the most demanding of cryogenic applications. From the original C44 R5 and MC44 designs the seat and body seals have remained a constant feature and with both products now rationalised into the C44 R7, additional technical advantages have been included to provide what is considered the best cryogenic ball valve on the market. The Worcester 3-piece ball valve offers a number of technical advantages over other types of valve. Tested and certified to EN1626 and can be used on TPED CATIII applications.
- Compact design with high flow velocity through quarter-turn operation
- Positive cavity pressure relief to prevent dangerous over-pressure through thermal expansion
- Ease of actuation and control seat available for throttling applications
